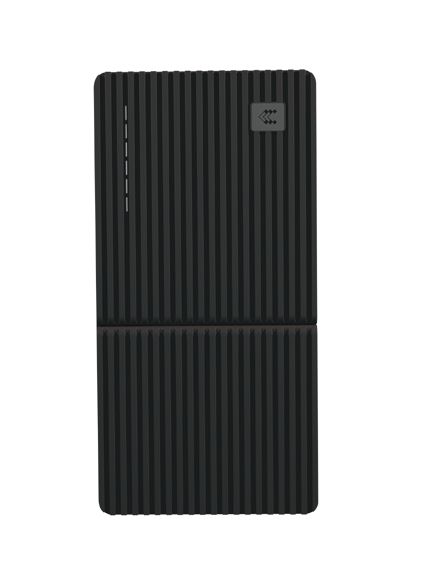

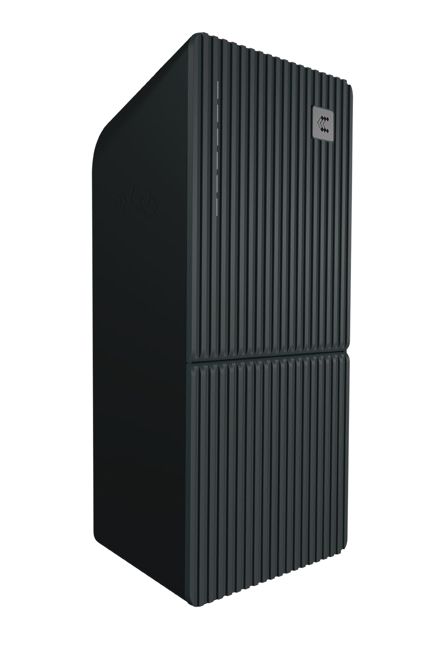

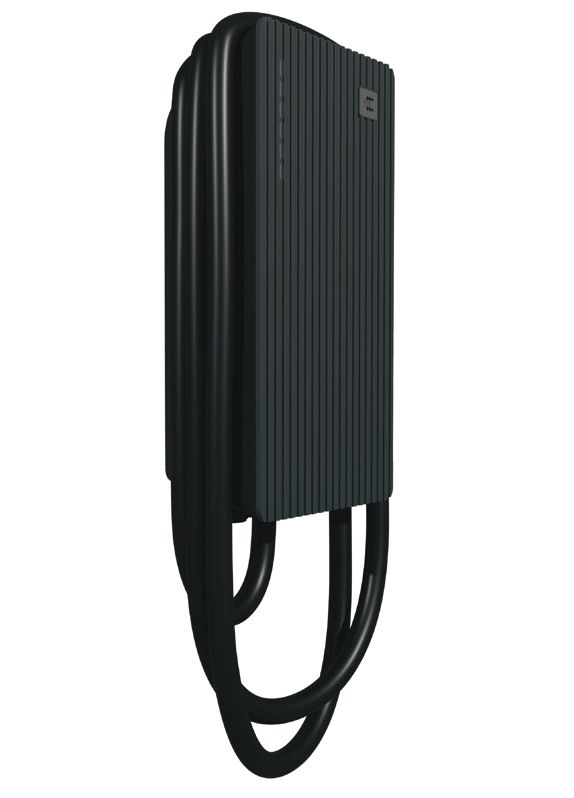

TeltoCharge EVC110-11 Smart EV Charger (Type 2 Socket) – 11kW
Easy, smart, and reliable, the TeltoCharge EVC110-11 is an EV charger that you can customize to your needs. It offers an exceptional product that combines functionality, premium looks, a high-quality build, and smart EV charging features. The 11kW model is ideal for fast overnight home charging or for use in commercial settings.
Key Benefits & Features
- Customizable Design: Features interchangeable front plates with five different design options (Slate Grey included), allowing you to match your charger to your personal style or environment.
- Smart & Connected: Connect the TeltoCharge to 3rd party OCPP 1.6 Cloud platforms via Wi-Fi or Ethernet (LAN). Alternatively, manage it locally with your mobile device via a Bluetooth Low Energy connection using the Teltonika Energy app.
- Secure Authorization: Prevents unwanted use with quick and easy EV charging authorization via the integrated NFC card reader or the mobile application.
- Convenient Status Indicators: Dynamic LED lights on the front clearly show the charging status, authentication progress, and more at a glance.
- Built for Durability: Rated IP56 (water and dust resistant) and IK10 (impact resistant), meaning it can withstand even the harshest outdoor weather conditions.
Charging & Electrical Specifications
| Parameter | Specification |
|---|---|
| Product Group / Model | EVC110 (EVC1100P4011) |
| Charging Capacity | 11kW (Up to 22kW at 32A 3 Phase) |
| Output Type | Type 2 Socket (IEC 62196-2) |
| Front Plate Color | Slate Grey |
| Voltage | Three Phase: 400 V (±10%) |
| Main Frequency | 50/60 Hz |
| Network Type | T/N and IT/TT |
Connectivity & Compliance
- Application Connectivity: Bluetooth Low Energy (for setup and local management).
- Charger Connectivity: Wi-Fi 2.4 GHz, Ethernet (RJ45), OCPP 1.6 (for cloud platforms). 4G/LTE (optional via modem on other models).
- Protection Systems: Includes output voltage/current monitoring, temperature monitoring, residual current monitoring (30mA AC / 6 mA DC), and ground fault detection.
- Certifications: CE & UKCA compliant, adhering to EMC, Safety (IEC/EN 61851-1), and Environmental standards.
Operating & Physical Specifications
- Operating Temperature: -30°C to +50°C.
- Protection Rating: IP56 (Ingress Protection) / IK10 (Impact Resistant).
- Fire Class: UL94.
- Built-in Energy Meter: Yes, for statistical data tracking.
- Load Balancing: Supports Static, Dynamic, and Phase balancing, plus Solar energy support.
- Warranty: 36 months.
